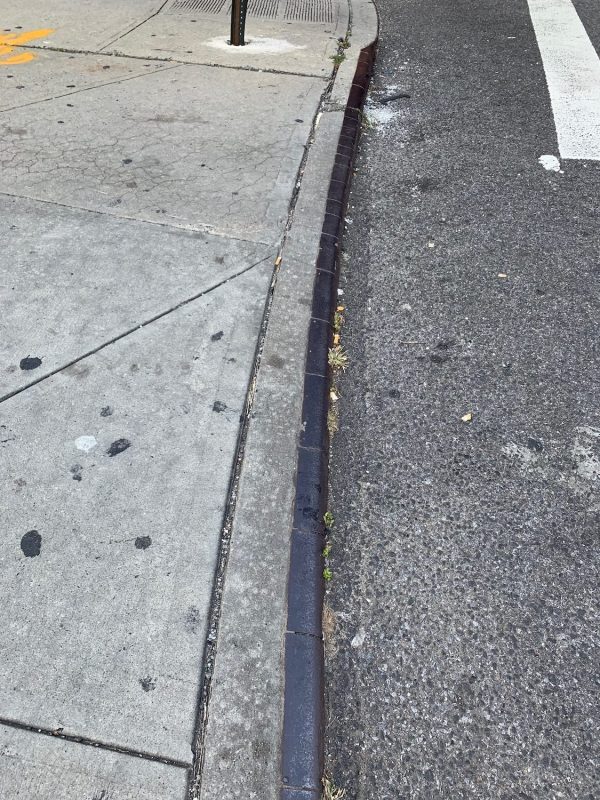

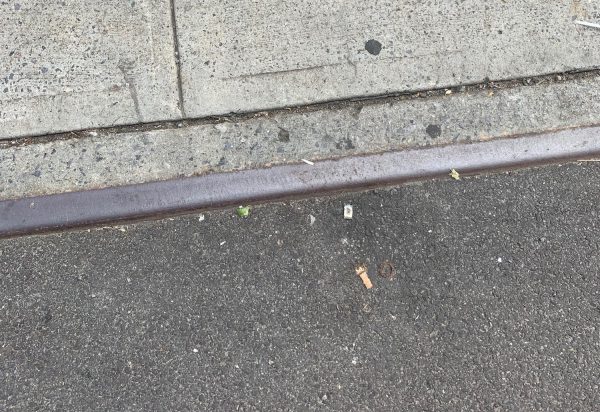

NYC DOT approved steel curb
Cut, shaped, primed, and painted to specification. NYC DOT Approved steel curb. Standard and custom sizes available.
Expansion joints in the steel curb facing and concrete backing shall be nt a maximum spacing of 2 feet
The expansion joints of the curb and steel curb facing shall line up with the expansion joints of the concrete sidewalks.
No piece of steel curb facing having less than two (2) welded dowels
Structural steel as per 20-8-35 type A-I (A.S.T.H. designation A36).
Concrete to be C1U9S b-32
