Description

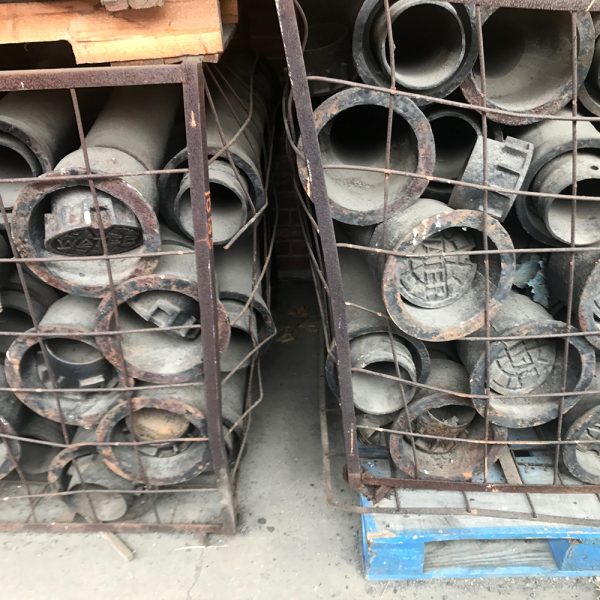

NYC Standard Valve Box – AC-VB3215-NYCDEP
The Amercast AC-VB3215-NYCDEP New York City Standard Valve Box is a two-piece adjustable cast iron valve box engineered for municipal water distribution systems, underground gate valves, curb valves, and water main infrastructure throughout New York City and surrounding utility networks. Designed to meet the dimensional and operational requirements commonly associated with NYC Department of Environmental Protection (NYCDEP) installations, this valve box provides reliable surface access to buried water valves while allowing vertical adjustment to accommodate final grade conditions. NYCDEP specifications commonly require adjustable slide-type valve boxes for water main construction projects. (NYSDOT)
Unlike manhole frames and covers that provide personnel entry access, valve boxes are specifically designed to protect valve operating nuts while allowing utility crews to access and operate critical water system controls from the surface without excavation. The AC-VB3215-NYCDEP incorporates a telescoping two-piece design that enables field adjustment during roadway reconstruction, sidewalk replacement, utility upgrades, and grade modifications.
Manufactured from heavy-duty cast iron, this valve box is intended for long-term service in demanding urban environments where durability, corrosion resistance, and dimensional stability are essential. The assembly includes a cast iron cover marked WATER, providing immediate utility identification for municipal crews, contractors, and maintenance personnel. Amercast manufactures municipal castings serving waterworks, sewer, and infrastructure applications throughout North America. (American Cast Iron Products, Inc.)
Product Features
- NYC-style adjustable valve box
- Two-piece slip-type construction
- Cast iron body and cover
- WATER identification lid
- Telescoping adjustment design
- Suitable for water valve access
- Accommodates grade adjustments
- Municipal utility specification design
- Corrosion-resistant cast iron construction
- Roadway and sidewalk applications
- Available with flange and non-flange configurations
- Locking lid options available
- Long service life
- Compatible with underground water distribution systems
Typical Applications
The AC-VB3215-NYCDEP Valve Box is commonly specified for:
- Municipal Water Mains
- Gate Valve Installations
- Water Distribution Networks
- Water Transmission Systems
- Utility Rehabilitation Projects
- Infrastructure Improvements
- Roadway Reconstruction Projects
- Sidewalk Utility Access
- New Water Main Construction
- Water Service Installations
- Public Utility Systems
- Institutional Campuses
- Industrial Water Networks
- Utility Maintenance Programs
The adjustable design allows utility operators to maintain access to buried valves even after roadway resurfacing or grade changes.
Engineering Specifications
| Property | Specification |
|---|---|
| Product Number | AC-VB3215-NYCDEP |
| Product Type | Adjustable Valve Box |
| Construction | Two-Piece Slip Type |
| Material | Cast Iron |
| Utility Designation | WATER |
| Adjustment Style | Telescoping |
| Lid Diameter | Approximately 7-5/16″ |
| Cover Opening | Approximately 5-3/4″ |
| Base Diameter | Approximately 10-1/4″ |
| Valve Box Type | NYC Standard |
| Application | Water Distribution Systems |
Engineering Dimensions
Based on the engineering drawing provided:
Cast Iron Lid
| Dimension | Measurement |
|---|---|
| Lid Diameter | 7-5/16″ |
| Internal Opening | 5-3/4″ |
| Bottom Diameter | 7″ |
| Lid Depth | Approximately 1-1/2″ |
Bottom Section
| Dimension | Measurement |
|---|---|
| Base Diameter | 10-1/4″ |
| Barrel Diameter | 5-1/4″ to 5-3/4″ |
| Lower Body Height | 5-1/2″ |
| Construction | Adjustable |
Upper Section (Top with Bottom Flange)
| Dimension | Measurement |
|---|---|
| Top Diameter | 9″ |
| Intermediate Diameter | 7-5/8″ |
| Barrel Diameter | 6-3/8″ |
| Lower Diameter | 6-1/2″ |
| Bottom Flange Diameter | 9-1/2″ |
| Configuration | Slip-Type Adjustable |
Upper Section (Top with No Flange)
| Dimension | Measurement |
|---|---|
| Section Length | 26″ |
| Upper Diameter | 7″ |
| Lower Diameter | 6-1/16″ to 6-5/16″ |
| Configuration | Adjustable Extension |
Upper Section (Top with Top Flange)
| Dimension | Measurement |
|---|---|
| Overall Length | 26″ |
| Top Flange Diameter | 9-3/4″ |
| Intermediate Diameter | 8-3/8″ |
| Internal Diameter | 7-1/2″ |
| Opening Diameter | 6″ |
| Lower Diameter | 6-1/16″ to 6-5/16″ |
Why Adjustable Valve Boxes Are Important
Water distribution systems require periodic operation, maintenance, and emergency access. Adjustable valve boxes provide a practical method of maintaining access to buried valves while accommodating changing surface elevations.
Grade Adjustment Flexibility
Road resurfacing projects often alter final elevations. Adjustable valve boxes can be raised or lowered to match finished grades without replacing the entire assembly.
Simplified Maintenance Access
Utility crews can locate and operate valves without excavation, reducing maintenance costs and minimizing service disruptions.
Infrastructure Protection
The valve box protects operating nuts and valve stems from soil intrusion, debris accumulation, and accidental damage.
Long-Term Accessibility
Properly installed valve boxes preserve access to critical water infrastructure throughout the life of the system.
NYCDEP water main standards frequently reference adjustable valve box assemblies as part of municipal water system construction practices. (NYSDOT)
Cast Iron Performance Advantages
| Performance Characteristic | Benefit |
|---|---|
| High Compressive Strength | Withstands roadway loading |
| Dimensional Stability | Maintains alignment over time |
| Abrasion Resistance | Suitable for urban environments |
| Corrosion Resistance | Long service life underground |
| Impact Resistance | Handles utility maintenance activity |
| Freeze-Thaw Durability | Reliable year-round performance |
Cast iron remains one of the most widely specified materials for municipal utility castings because of its proven durability in underground infrastructure applications. (American Cast Iron Products, Inc.)
Available Configurations
Amercast can supply NYC-style valve boxes in multiple configurations including:
- Standard WATER Covers
- Locking Covers
- Custom Utility Markings
- Flanged Assemblies
- Non-Flanged Assemblies
- Adjustable Extensions
- Replacement Lids
- Replacement Tops
- Replacement Bottoms
- Project-Specific Configurations
Custom municipal castings can also be manufactured to meet agency, utility authority, and infrastructure project requirements.
Related Products
- New York City Valve Box
- Valve Boxes
- Manhole Frames and Covers
- Municipal Castings NYC
- Custom Cast Iron Covers
- Manhole Risers and Extension Rings
- Electric Utility Frames and Covers
Industry Resource
For information regarding water main construction standards, valve installations, and municipal water infrastructure:
NYC Department of Environmental Protection – Water Main Standards
https://www.nyc.gov/site/dep/index.page
NYCDEP publishes water distribution standards, specifications, and infrastructure requirements used throughout New York City’s water system. (New York City Government)
Why Choose Amercast?
Amercast is a manufacturer of municipal castings, valve boxes, manhole frames, covers, grates, and utility access products serving waterworks, wastewater, sewer, and infrastructure markets. The company offers a wide range of cast iron solutions engineered for municipal agencies, contractors, consulting engineers, utility authorities, and infrastructure owners throughout North America. (American Cast Iron Products, Inc.)
Request a Quote
Need pricing, engineering drawings, CAD files, municipal specifications, replacement components, or custom utility castings?
Contact Amercast today to request a quote for the AC-VB3215-NYCDEP New York City Standard Valve Box. Our team can assist with waterworks infrastructure, municipal castings, utility access products, replacement valve box components, and project-specific specifications for municipal and utility applications throughout North America.
